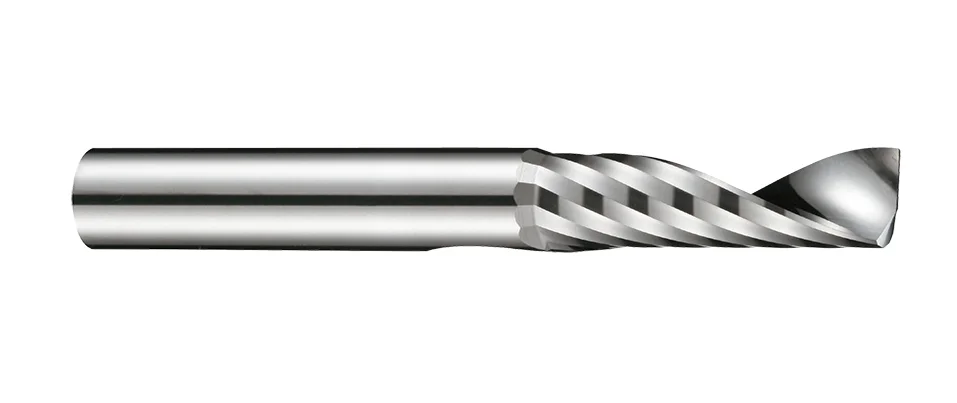

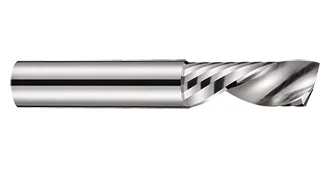

E195R / E195L End Mills For Aluminium
METRIC
ASIA
- End Mills with Right-Hand for Aluminium- Single Point
- Design with sharp cutting edge, high removal cutting geometry, and fine grinding smooth surface to prevent sticking problem.
- Higher finishing of cutting edge to have better surface roughness after processing.
- Design with large chip removal space.
- Application for finishing in various Aluminium.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | T | |
| E195R | 3 | 12 | 38 | 3 | 1 |
| 4 | 15 | 50 | 4 | 1 | |
| 6 | 18 | 50 | 6 | 1 | |
| 8 | 22 | 60 | 8 | 1 | |
| 10 | 30 | 72 | 10 | 1 | |
| 12 | 30 | 75 | 12 | 1 | |
| E195L | 3 | 12 | 38 | 3 | 1 |
| 4 | 15 | 50 | 4 | 1 | |
| 6 | 18 | 50 | 6 | 1 | |
| 8 | 22 | 60 | 8 | 1 | |
| 10 | 30 | 72 | 10 | 1 | |
| 12 | 30 | 75 | 12 | 1 |
