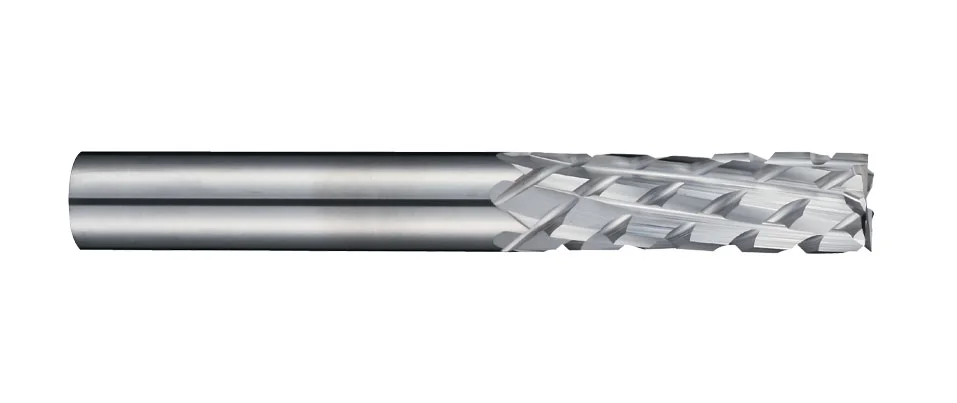

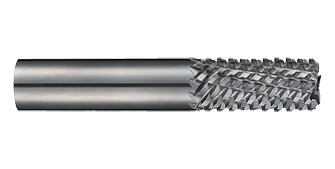

E190 / E191 Routers For Composite Materials
METRIC
ASIA
- Routers for Composite Materials
- Design with Staggered blade.
- Use to cut out fibers in the material to avoid fiber pulling out.
- Application for roughing in Phenolic-epoxy parts, Polyester glass reinforced products, Graphite, Composite...etc.
- ※ Coated version is available.
FRP CFRP
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR13 |
| FRP CFRP Composite Material |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | T | |
| E190 | 3 | 9 | 50 | 3 | 4 |
| 4 | 12 | 60 | 4 | 4 | |
| 6 | 18 | 70 | 6 | 6 | |
| 8 | 24 | 75 | 8 | 6 | |
| 10 | 30 | 80 | 10 | 6 | |
| 12 | 36 | 80 | 12 | 8 | |
| E191 | 3 | 9 | 50 | 3 | 6 |
| 4 | 12 | 60 | 4 | 6 | |
| 6 | 18 | 70 | 6 | 8 | |
| 8 | 24 | 75 | 8 | 10 | |
| 10 | 30 | 80 | 10 | 12 | |
| 12 | 36 | 80 | 12 | 14 |
