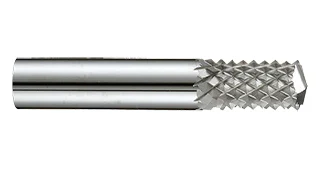

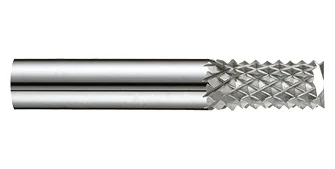

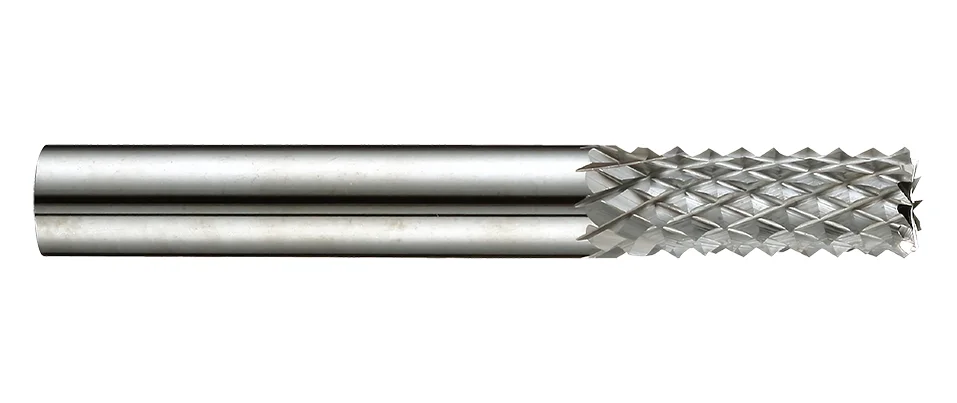

E197 / E198 / E199 Routers For Composite Materials
METRIC
ASIA
- Routers for Composite Materials
- Design with Staggered blade.
- Use to cut out fibers in the material to avoid fiber pulling out.
- Application for roughing in Phenolic-epoxy parts, Polyester glass reinforced products, Graphite, Composite...etc.
- ※ Coated version is available
FRP CFRP
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR13 |
| FRP CFRP Composite Material |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | T | |
| E197 | 3 | 12 | 38 | 3 | |
| 4 | 15 | 50 | 4 | ||
| 6 | 18 | 50 | 6 | ||
| 8 | 22 | 60 | 8 | ||
| 10 | 30 | 72 | 10 | ||
| 12 | 30 | 75 | 12 | ||
| E198 | 3 | 12 | 38 | 3 | 2 |
| 4 | 15 | 50 | 4 | 2 | |
| 6 | 18 | 50 | 6 | 2 | |
| 8 | 22 | 60 | 8 | 2 | |
| 10 | 30 | 72 | 10 | 2 | |
| 12 | 30 | 75 | 12 | 2 | |
| E199 | 3 | 12 | 38 | 3 | 2 |
| 4 | 15 | 50 | 4 | 2 | |
| 6 | 18 | 50 | 6 | 2 | |
| 8 | 22 | 60 | 8 | 2 | |
| 10 | 30 | 72 | 10 | 2 | |
| 12 | 30 | 75 | 12 | 2 |
