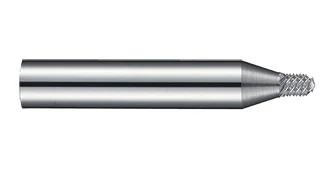

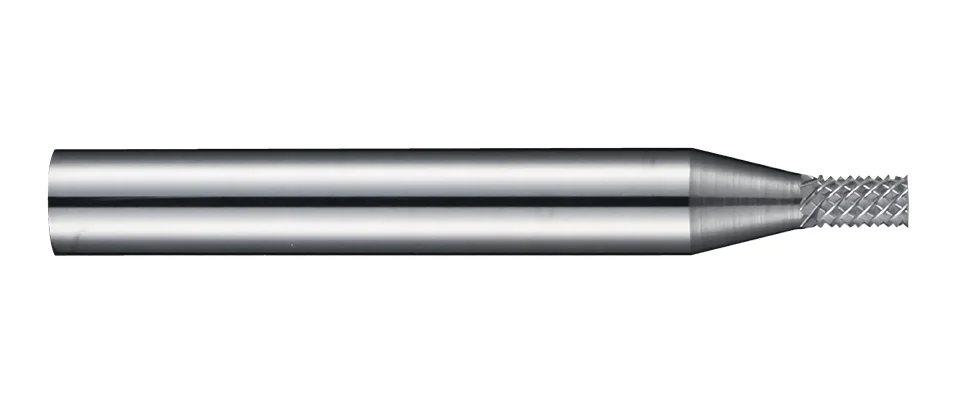

E298 / E299 Routers For Composite Materials
METRIC
ASIA
- Routers for Composite Materials
- Design with Staggered blade.

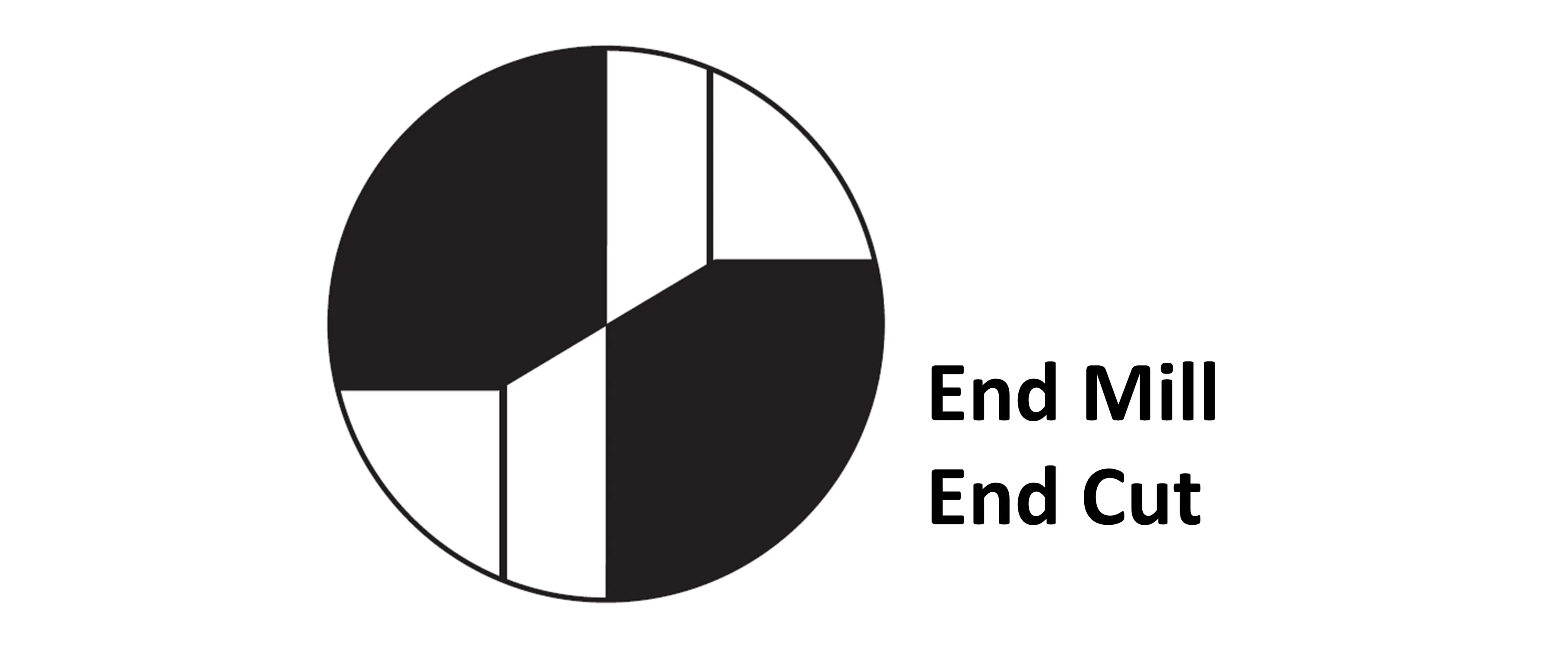

- End cutting edge design as same as end mill blade.
- Use to cut out fibers in the material to avoid fiber pulling out.
- Application for roughing in Phenolic-epoxy parts, Polyester glass reinforced products, Graphite, Composite...etc.
- ※ Coated version is available
FRP CFRP
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR13 |
| FRP CFRP Composite Material |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | T | |
| E298 | 1.5 | 3 | 50 | 4 | 2 |
| 1.8 | 3.6 | 50 | 4 | 2 | |
| 2 | 4 | 50 | 4 | 2 | |
| 2.5 | 5 | 50 | 4 | 2 | |
| 3 | 6 | 50 | 4 | 2 | |
| E299 | 1.5 | 3 | 50 | 4 | 2 |
| 1.8 | 3.6 | 50 | 4 | 2 | |
| 2 | 4 | 50 | 4 | 2 | |
| 2.5 | 5 | 50 | 4 | 2 | |
| 3 | 6 | 50 | 4 | 2 |
