E113X / E114X Short End Mills For Lathe
METRIC
ASIA

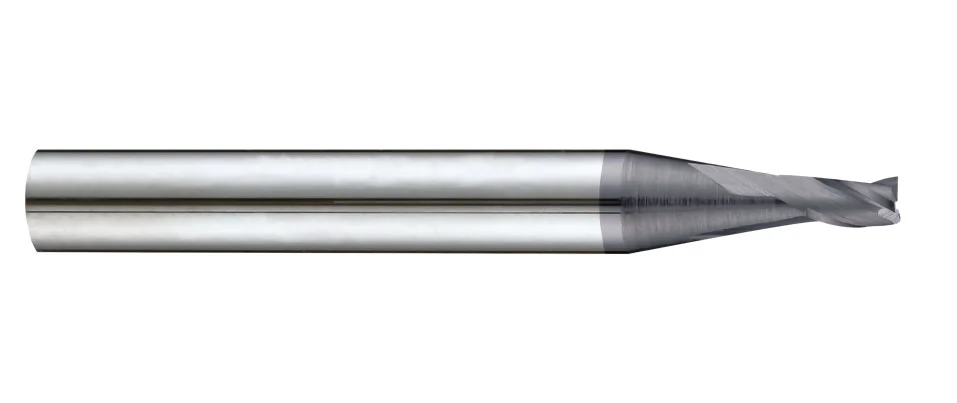

- E113X End Mills For Lathe- 3 Flutes

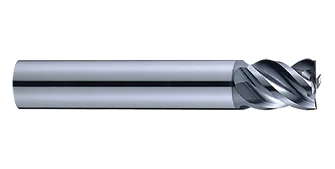

- E114X End Mills For Lathe- 4 Flutes
- Widely used with driven tool holder in CNC Lathe.
- Perform excellent wear resistance with AlTiN coating.
- Short cutting length is to prevent from interrruption in lathe.
- Applied in verious steel material up to HRC48.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | ||
| E113X | 2 | 3 | 50 | 6 | 3 |
| 3 | 5 | 50 | 6 | 3 | |
| 4 | 6 | 50 | 6 | 3 | |
| 5 | 8 | 50 | 6 | 3 | |
| 6 | 10 | 50 | 6 | 3 | |
| 8 | 12 | 50 | 8 | 3 | |
| 10 | 15 | 50 | 10 | 3 | |
| E114X | 2 | 3 | 50 | 6 | 4 |
| 3 | 5 | 50 | 6 | 4 | |
| 4 | 6 | 50 | 6 | 4 | |
| 5 | 8 | 50 | 6 | 4 | |
| 6 | 10 | 50 | 6 | 4 | |
| 8 | 12 | 50 | 8 | 4 | |
| 10 | 15 | 50 | 10 | 4 |
