E115HX / E116HX Short End Mills For Lathe

METRIC ASIA

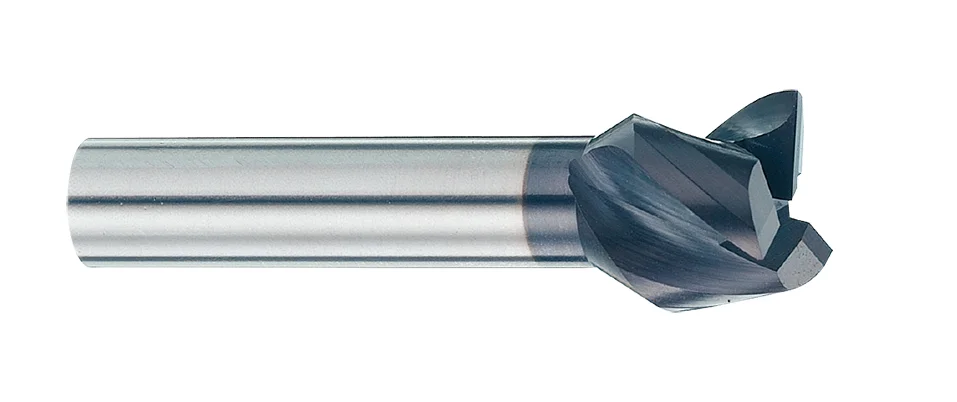

  • E115HX End Mills For Lathe- 3 Flutes

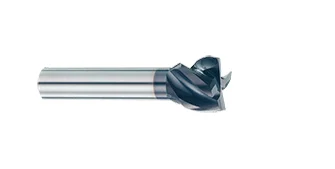

  • E116HX End Mills For Lathe- 4 Flutes
  • Widely used with driven tool holder in CNC Lathe.
  • Perform excellent wear resistance with AlTiN coating.
  • The very short tool length is to prevent from interrruption in lathe.
  • Increase the commonality by adopting the same small shank diameter.
  • Applied in verious steel material up to HRC48.
  • MG carbide
  • ALTiCrNHX
  • 3841
  • Blade3 New
  • Nr5
  • 90
  • 1
  • 3
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M N
GR1 GR2 GR3 GR4 GR5 GR8 GR10 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Aluminium Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Code No. Dc Lc L d z
0 -0.02 mm mm h6
E115HX 2 6 35 4 3
3 6 35 4 3
4 6 35 4 3
5 6 35 6 3
6 6 35 6 3
7 6 35 6 3
8 6 35 6 3
8 6 35 8 3
9 6 35 6 3
10 6 35 6 3
10 6 35 10 3
12 6 35 6 3
12 6 35 12 3
E116HX 2 6 35 4 4
3 6 35 4 4
4 6 35 4 4
5 6 35 6 4
6 6 35 6 4
7 6 35 6 4
8 6 35 6 4
8 6 35 8 4
9 6 35 6 4
10 6 35 6 4
10 6 35 10 4
12 6 35 6 4
12 6 35 12 4
