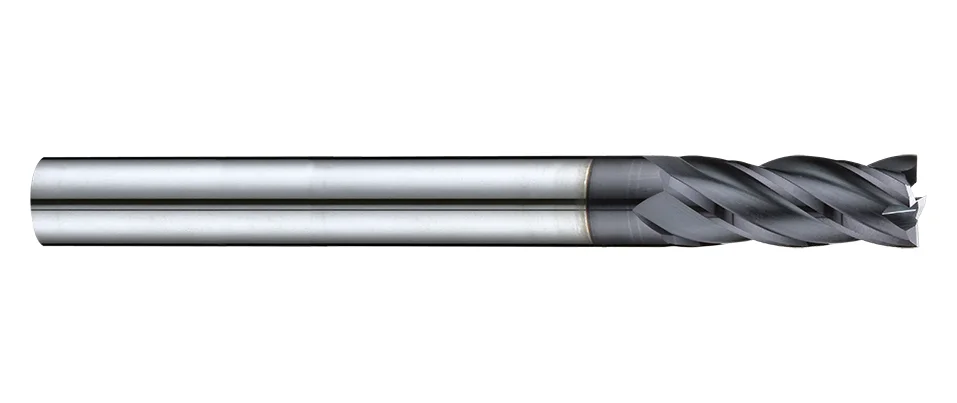

E126X Finishing End Mills

METRIC ASIA
  • Finishing End Mills with Long Length- 4 Flutes
  • Suitable for general cutting process, extended length enable to work on deeper work piece with excellent cutting surface.
  • Nano multilayer coating enable to enhance wear resistance.
  • MG carbide
  • 塗層種類2
  • 螺旋角 3-2
  • Blade4 New
  • N 10度 - 3頁
  • 90
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
3 12 70 6 4
4 15 70 6 4
5 20 80 6 4
6 20 80 6 4
7 25 100 8 4
8 25 100 8 4
9 30 100 10 4
10 30 100 10 4
11 35 110 12 4
12 40 110 12 4
14 40 120 16 4
16 50 140 16 4
20 60 160 20 4
