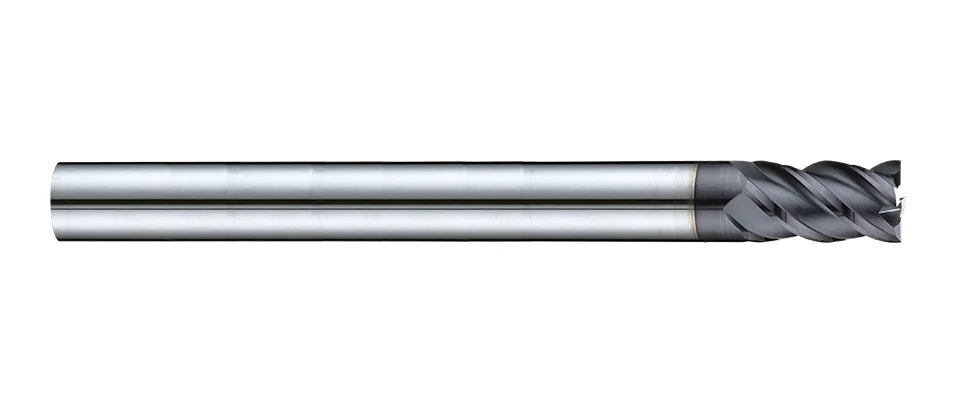

E128X Finishing End Mills
METRIC
ASIA
- Finishing End Mills with Long Length- 4 Flutes
- Suitable for finishing and genaral cutting process, extended length enable to work on deeper work piece with excellent cutting surface.
- Nano multilayer coating enable to enhance wear resistance.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | |
| 3 | 12 | 80 | 4 | 4 |
| 4 | 15 | 80 | 4 | 4 |
| 5 | 20 | 100 | 6 | 4 |
| 6 | 20 | 100 | 6 | 4 |
| 8 | 25 | 130 | 8 | 4 |
| 10 | 30 | 160 | 10 | 4 |
| 12 | 40 | 180 | 12 | 4 |
| 16 | 50 | 210 | 16 | 4 |
| 20 | 60 | 210 | 20 | 4 |
