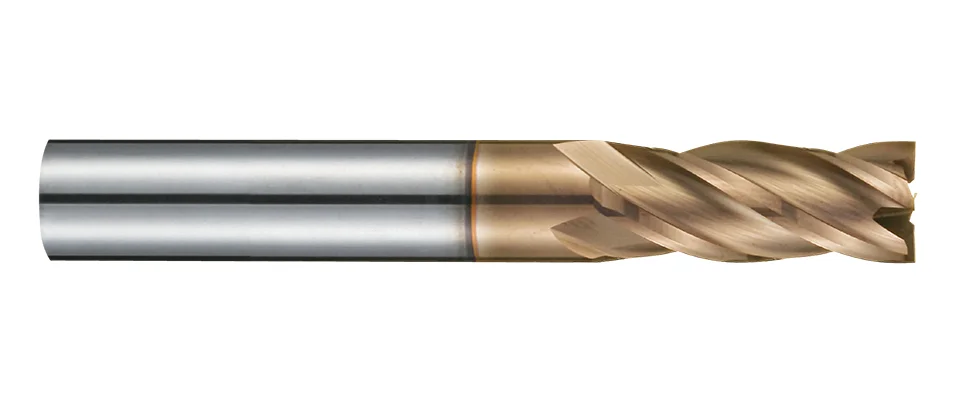

E164TX Finishing End Mills

METRIC ASIA
  • Finishing End Mills with Standard & Long Length- 4 Flutes
  • Using the UMG carbide material and coated with high wear resistance TX coating enable to enhance tool life.
  • The small rake angle design with strong cutting edge for chipping resistance, suitable for high hardness material finishing process.
  • UMG carbide
  • 塗層種類4
  • 螺旋角 3-2
  • Blade4 New
  • N 1' 30度 - 7頁
  • 90
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 56HRC

P H M K N S

Work Material

P H
GR1 GR2 GR3 GR4 GR5 GR6 GR7
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
1 3 50 4 4
1.5 5 50 4 4
2 6 50 4 4
2.5 8 50 4 4
3 8 50 4 4
4 11 50 4 4
3 8 50 6 4
3.5 10 50 6 4
4 11 50 6 4
4.5 11 50 6 4
5 13 50 6 4
5.5 13 50 6 4
6 16 50 6 4
7 20 60 8 4
8 20 60 8 4
9 22 72 10 4
10 22 72 10 4
11 26 75 12 4
12 26 75 12 4
14 32 90 16 4
16 38 100 16 4
18 38 100 20 4
20 38 100 20 4
