E165TX Finishing End Mills
METRIC
ASIA

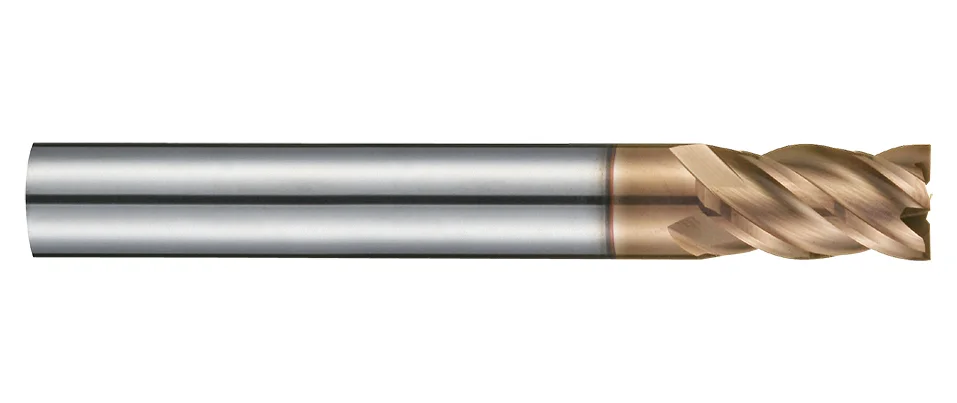

- Finishing End Mills with Standard & Long Length- 4 Flutes
- Using the UMG carbide material and coated with high wear resistance TX coating enable to enhance tool life.
- The small rake angle design with strong cutting edge for chipping resistance, suitable for high hardness material finishing process.
Steel < 56HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | |||||
|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR6 | GR7 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0 -0.02 | mm | mm | h6 | |
| 3 | 12 | 70 | 6 | 4 |
| 4 | 15 | 70 | 6 | 4 |
| 5 | 20 | 80 | 6 | 4 |
| 6 | 20 | 80 | 6 | 4 |
| 7 | 25 | 100 | 8 | 4 |
| 8 | 25 | 100 | 8 | 4 |
| 9 | 30 | 100 | 10 | 4 |
| 10 | 30 | 100 | 10 | 4 |
| 11 | 35 | 110 | 12 | 4 |
| 12 | 40 | 110 | 12 | 4 |
| 14 | 40 | 120 | 16 | 4 |
| 16 | 50 | 140 | 16 | 4 |
| 20 | 60 | 160 | 20 | 4 |
