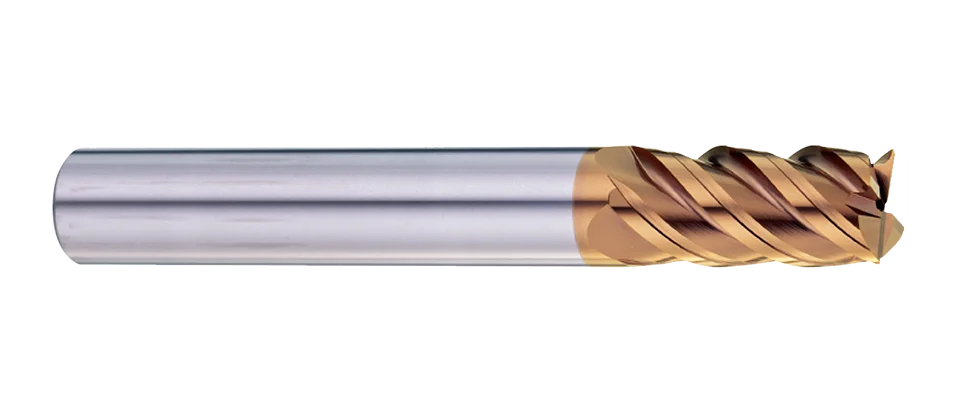

E158TX High Performance End Mills

METRIC ASIA
  • Finishing End Mills with Standard & Long Length- 4 Flutes
  • Using the UMG carbide material and coated with high wear resistance TX coating enable to enhance tool life.
  • Negative rake angle design makes cutting edge strong and chipping resistance.
  • High efficiency 45° helix angle enable to reduce cutting resistance.
  • Suitable for high hardness material finishing process.
  • 刀具材料3
  • 塗層種類4
  • 1-3
  • Blade4 New
  • Nr5
  • 90
  • 1
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 62HRC

P H M K N S

Work Material

P H M K N S
GR1 GR2 GR3 GR4 GR5 GR6 GR7 GR8 GR9 GR10 GR11 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel Stainless Steel Cast Iron Aluminium Copper Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
1 3 50 4 4
1.5 5 50 4 4
2 6 50 4 4
2.5 8 50 4 4
3A 8 50 4 4
4A 11 50 4 4
3 8 50 6 4
4 11 50 6 4
5 13 50 6 4
6 16 50 6 4
8 20 60 8 4
10 22 72 10 4
12 26 75 12 4
16 38 100 16 4
20 38 100 20 4
