E158TX High Performance End Mills
July 21,2022

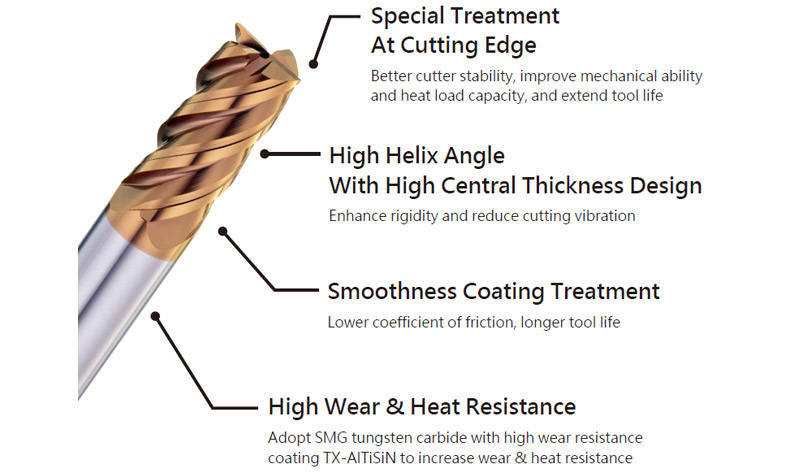

Features
High abrasion durability , suitable for high hardness workpieces

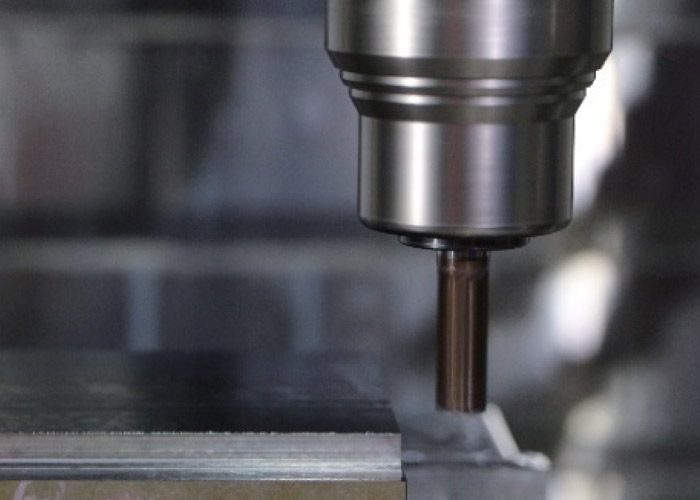

| Test Contents | Side Milling | |
|---|---|---|
| Tool type | End Mills | |
| Material | Work piece | SKD61 |
| HRC | 52 | |
| Heat Treatment | Yes | |
| Size | 130x100x65 mm | |
| Tool | E158TX Ø10 |
|---|---|
| RPM | 2550 rev/min |
| Cutting Speed | 80 m/min |
| Feed | 600 mm/min |
| feed | 0.059 mm/tooth |
| Milling Depth | Ap: 5 mm |
| Milling | Ae: 0.1 mm |
| Coolant | oil cooling |

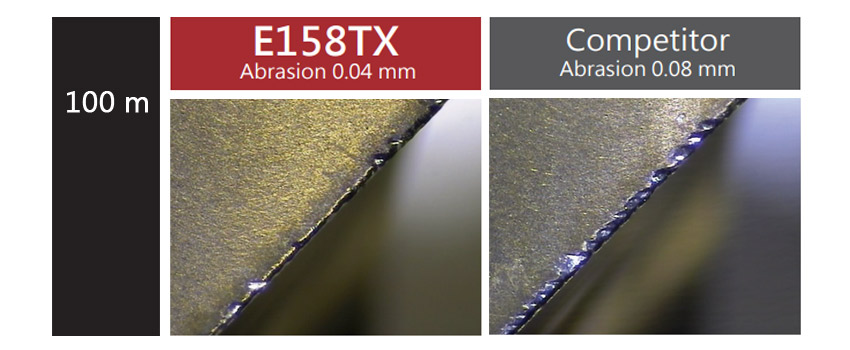

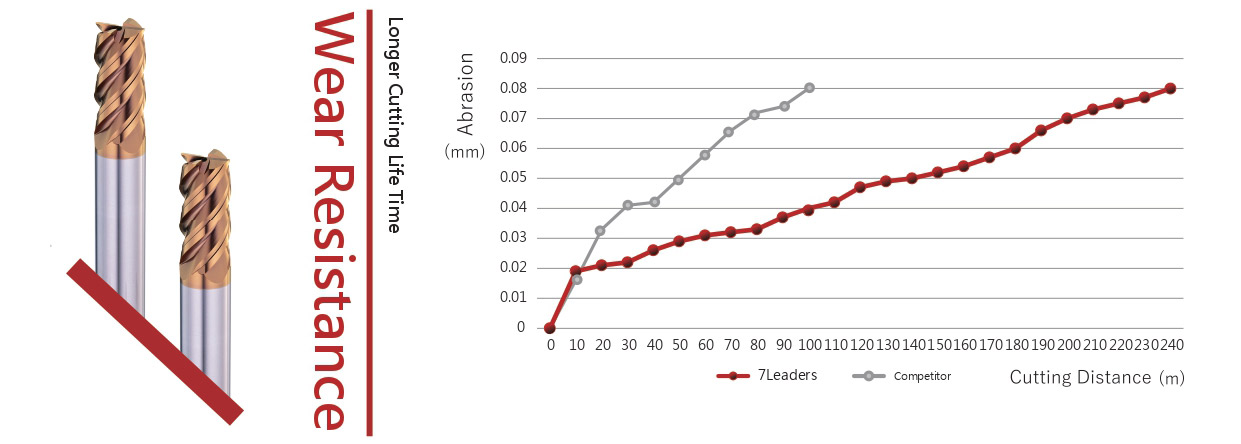

Under the same test condition, the abrasion durability of E158TX get around 100% more comparing with competitor same grade cutting tool. So, the E158TX is highly recommended for high hardness workpiece operation.
